Description

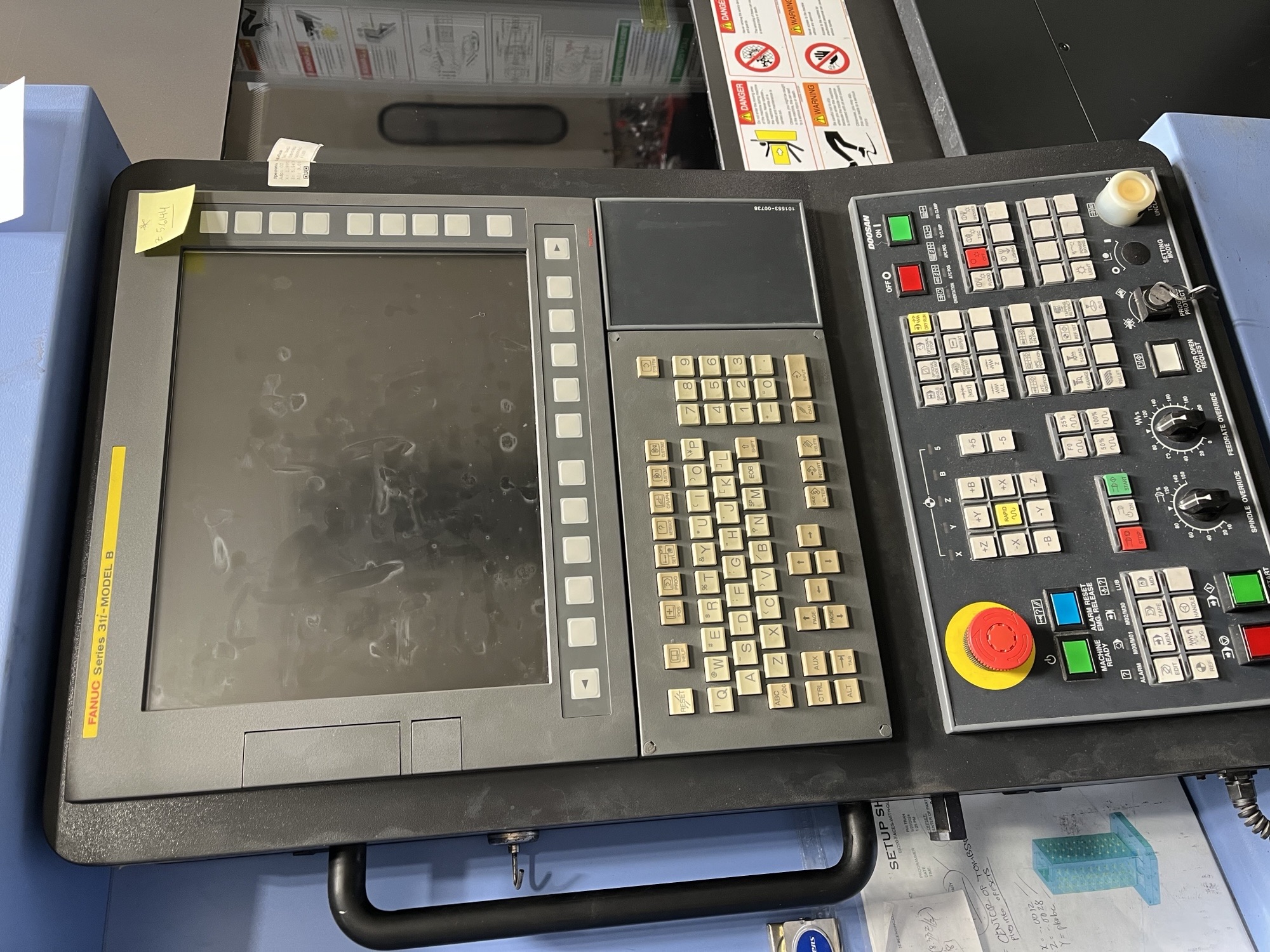

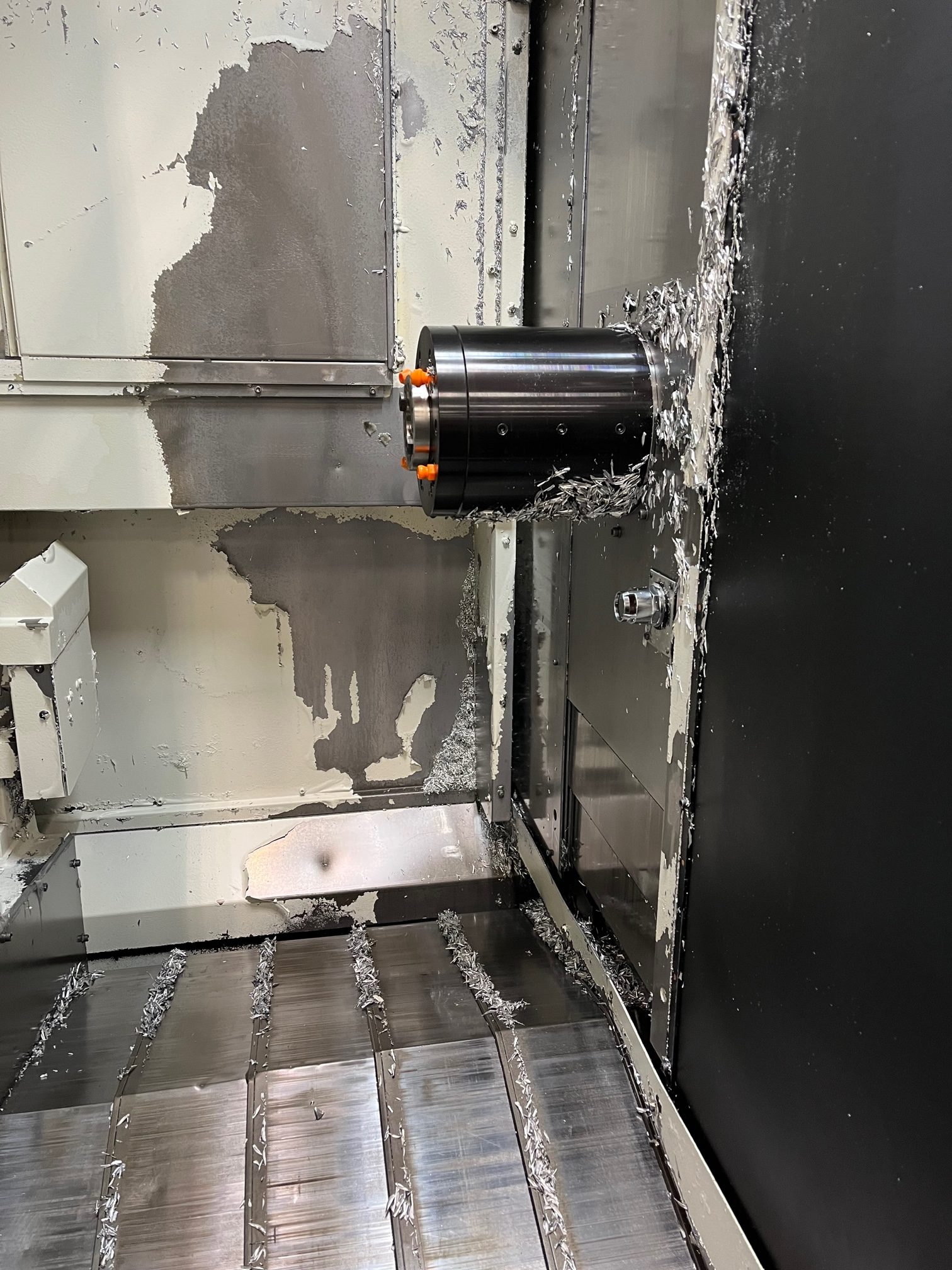

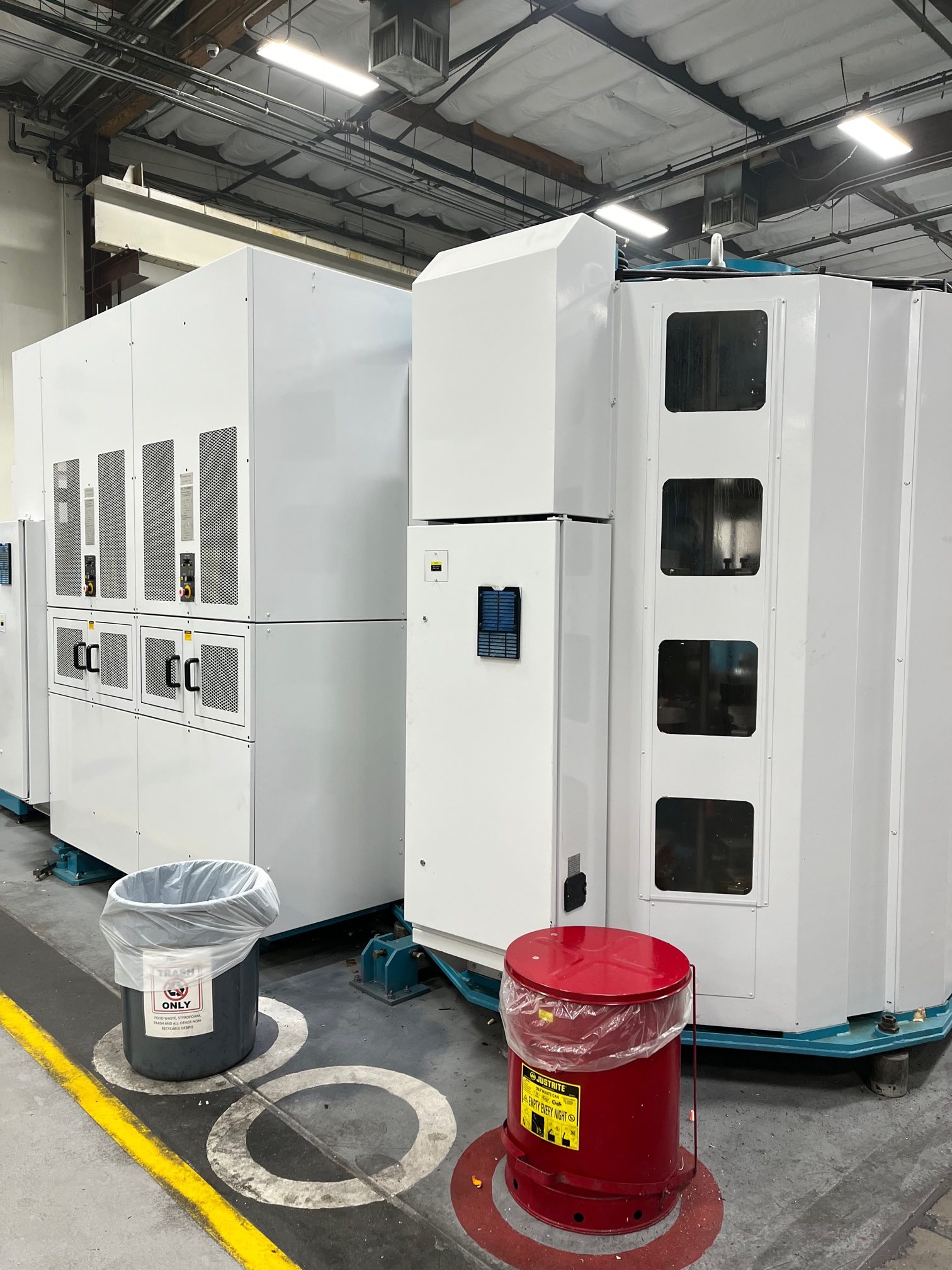

HM-X8000 Five-Axis Horizontal Machining Center w/ Fanuc 31i-B5 and all standard equipment
- 35 – 12,000 RPM, 7/24 #590, Electrical 2 steps, AC 60/35 HP
- Big Plus Spindle

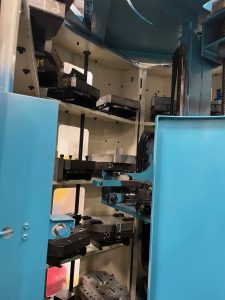

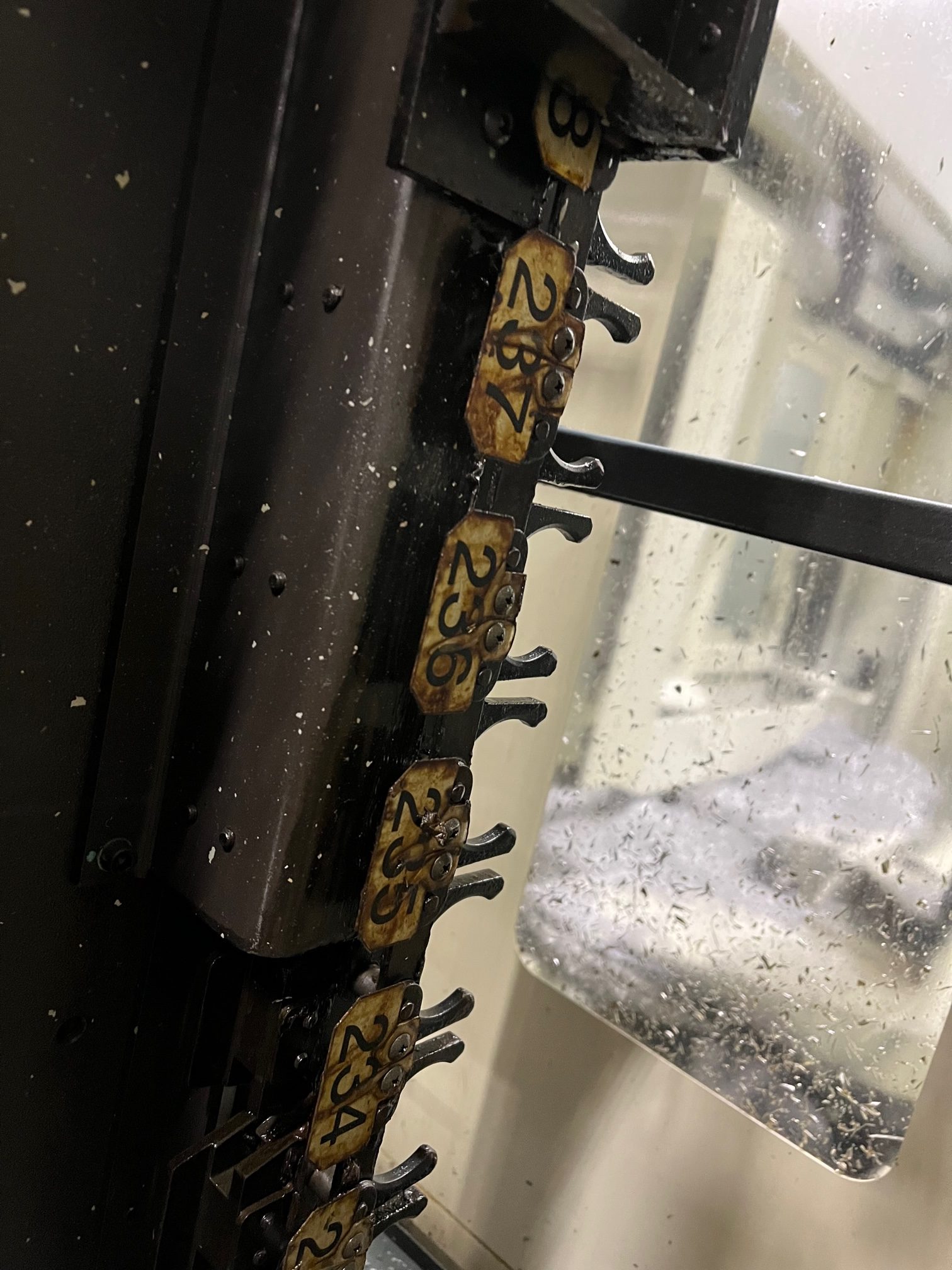

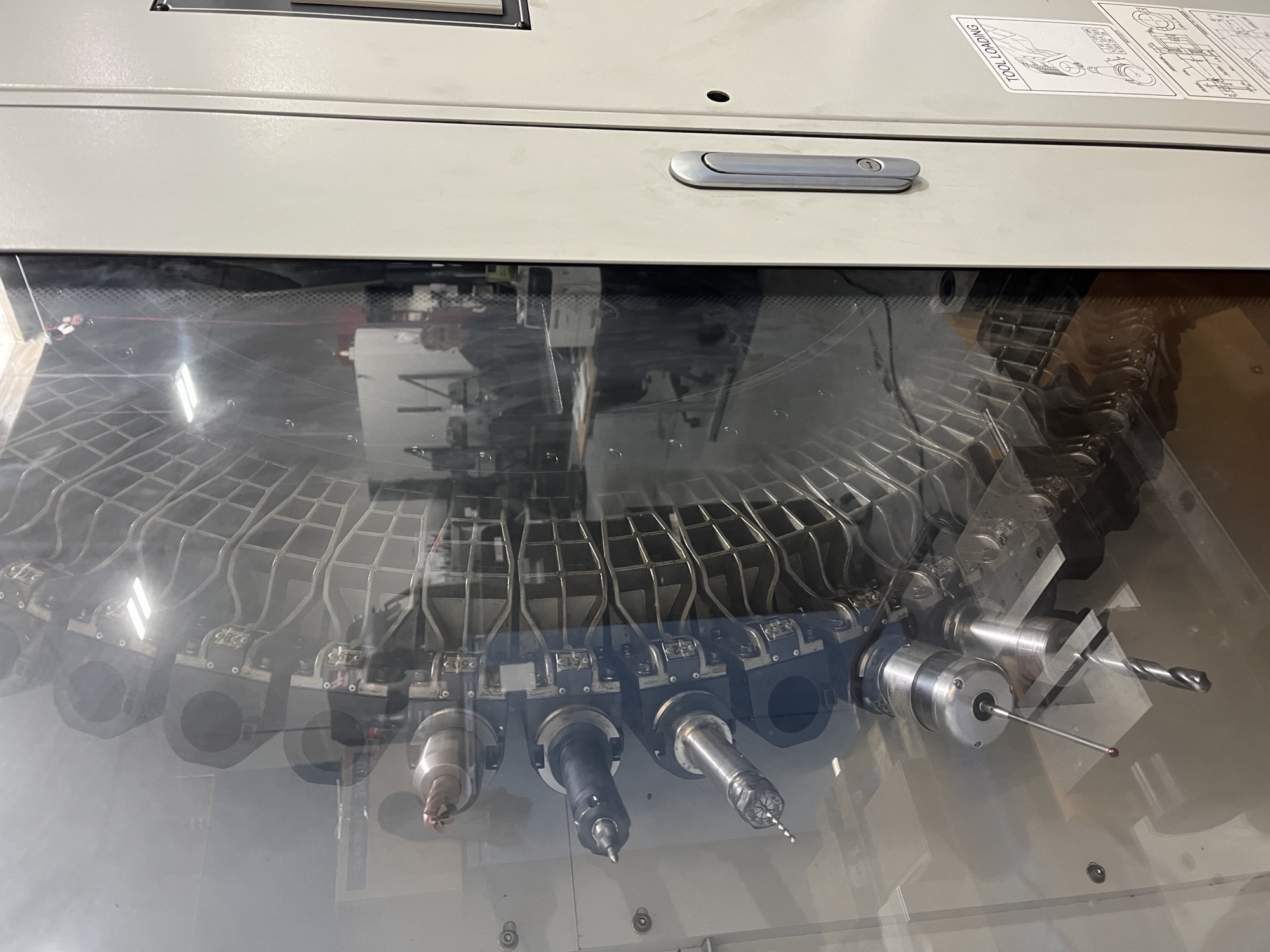

- 233 Tool Magazine
- Foundation Parts
- High torque spindle; 623 Nm (460 FT LBS)

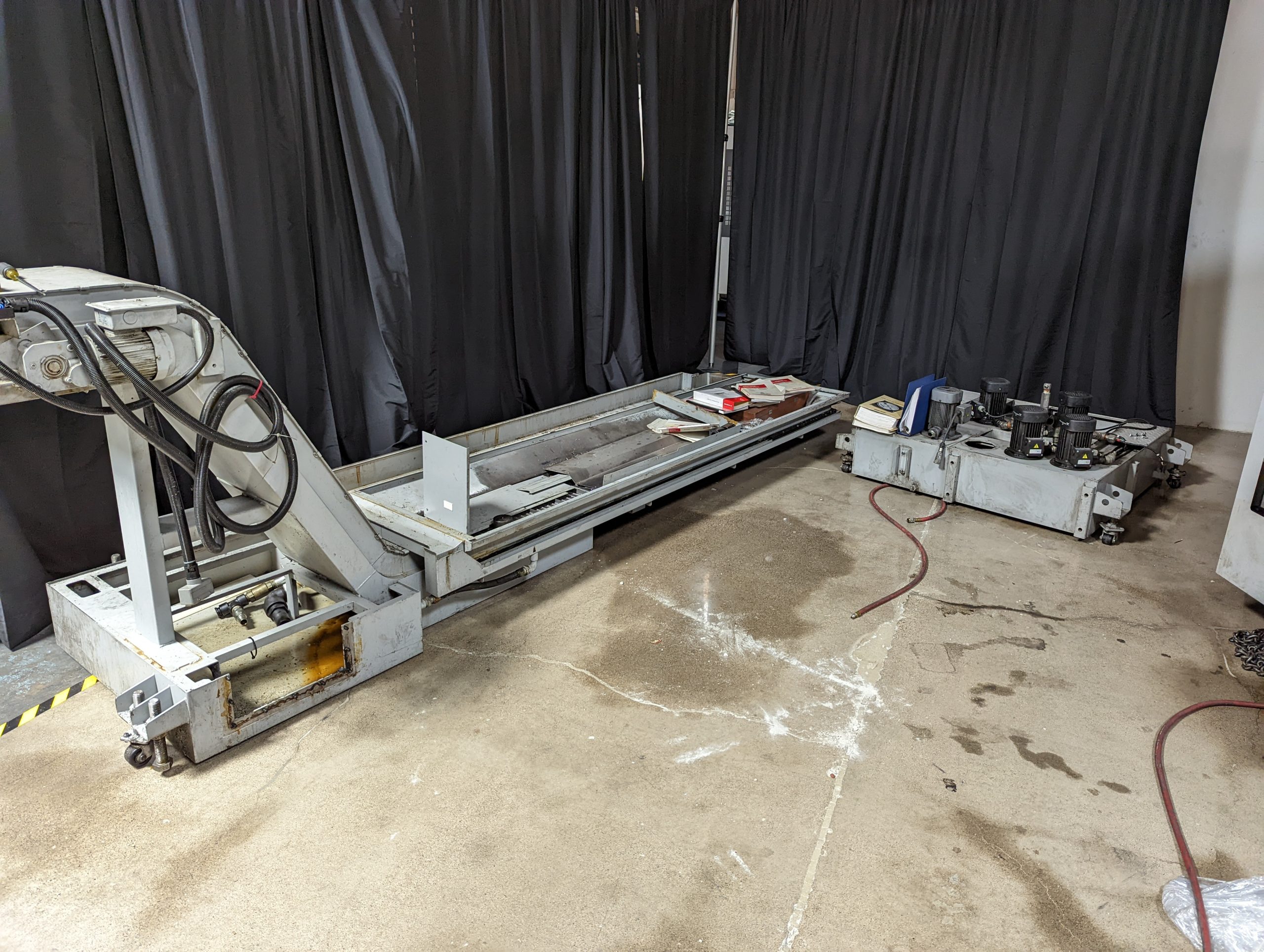

- Lift-up chip conveyor with multi-purpose style

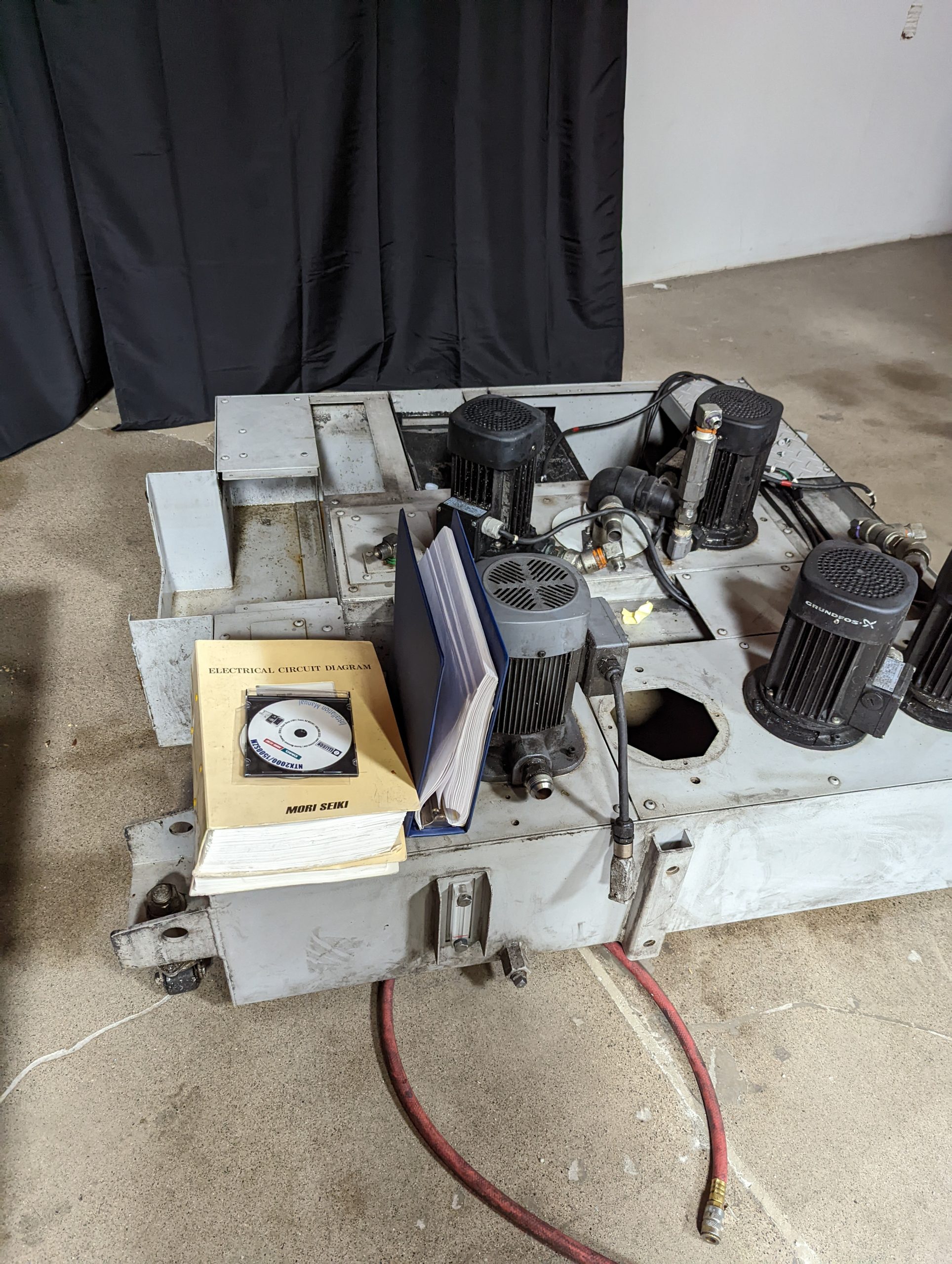

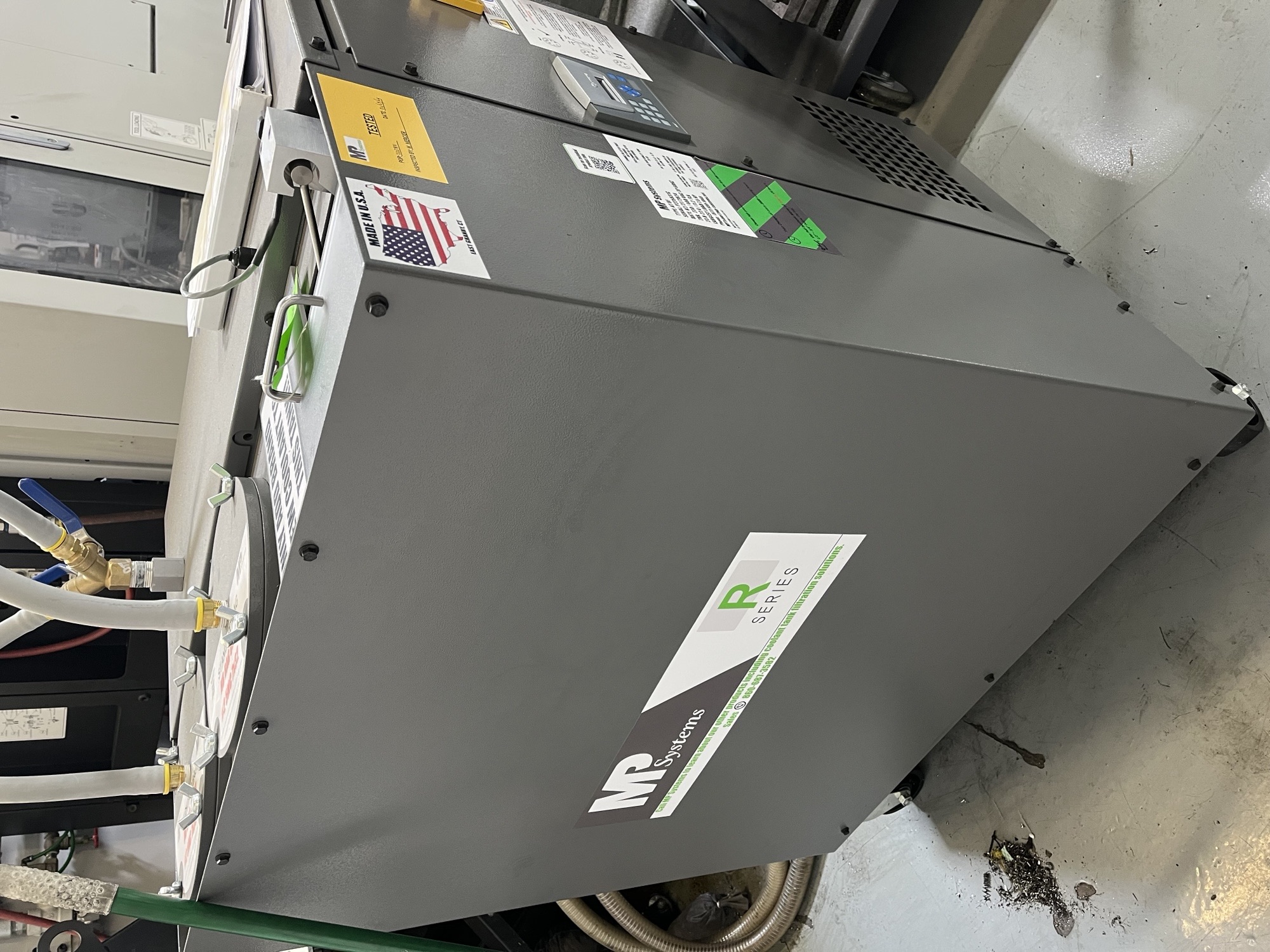

- Coolant thru the spindle w/ filtration system, operating at 1000 PSI

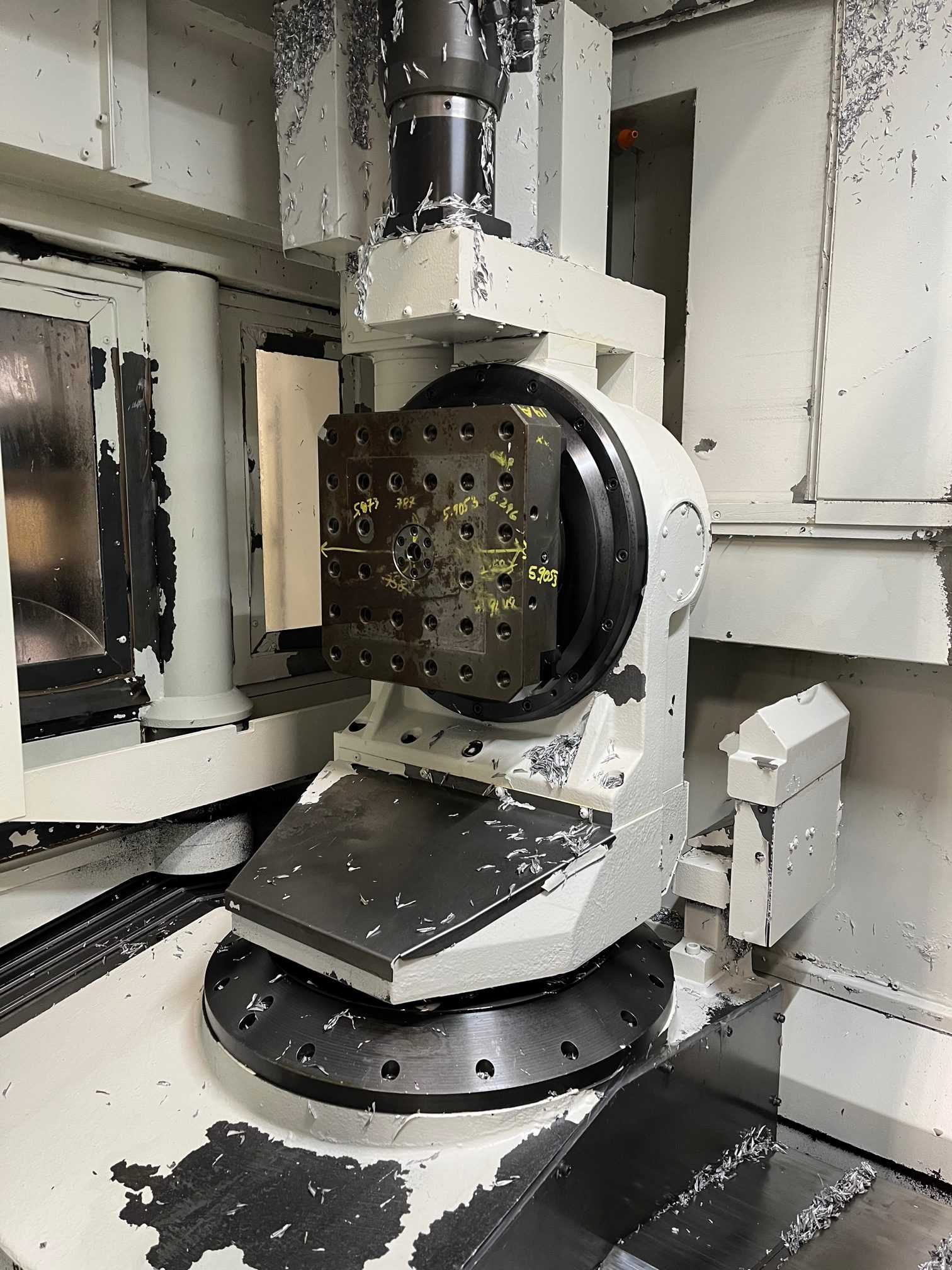

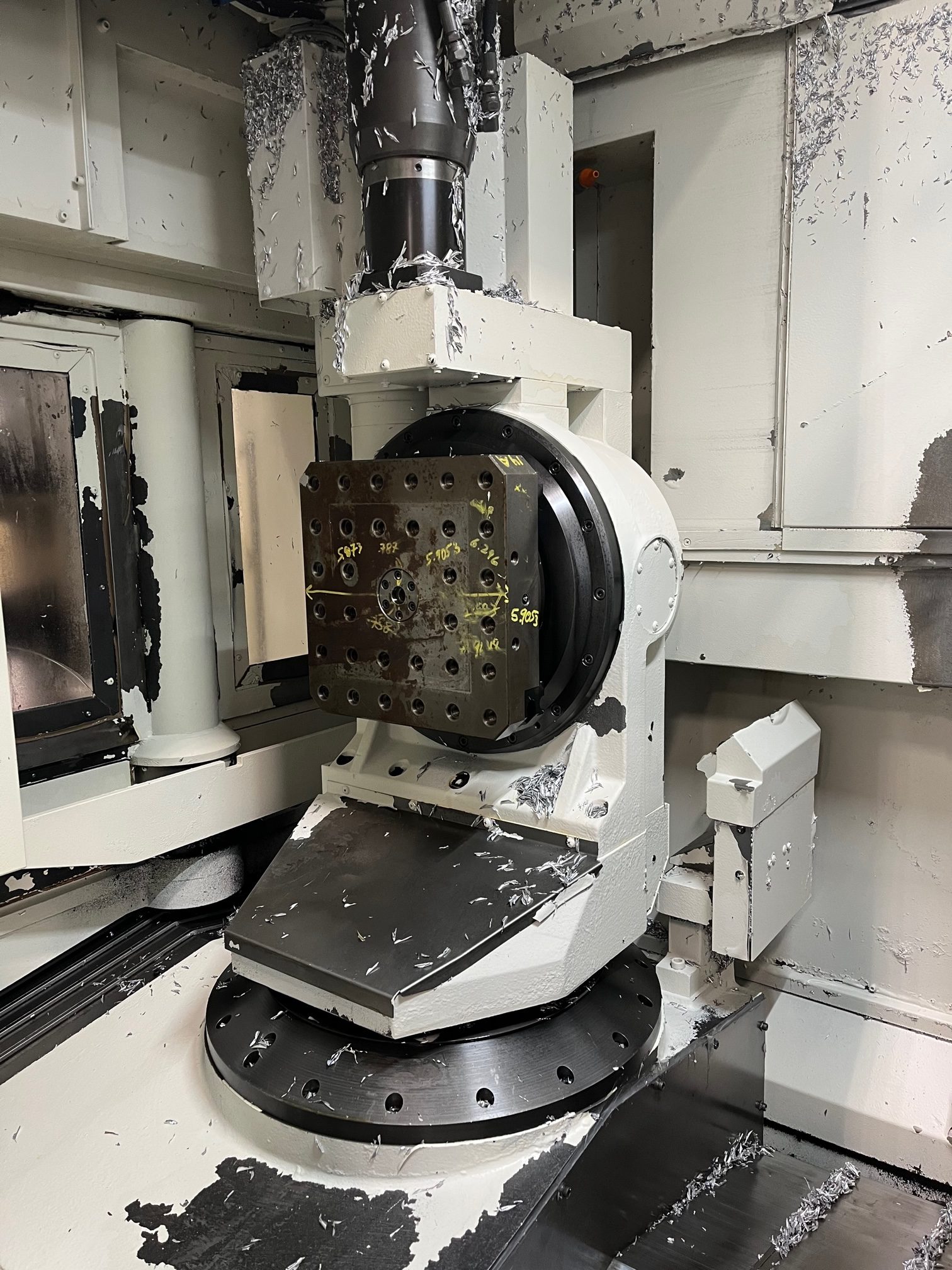

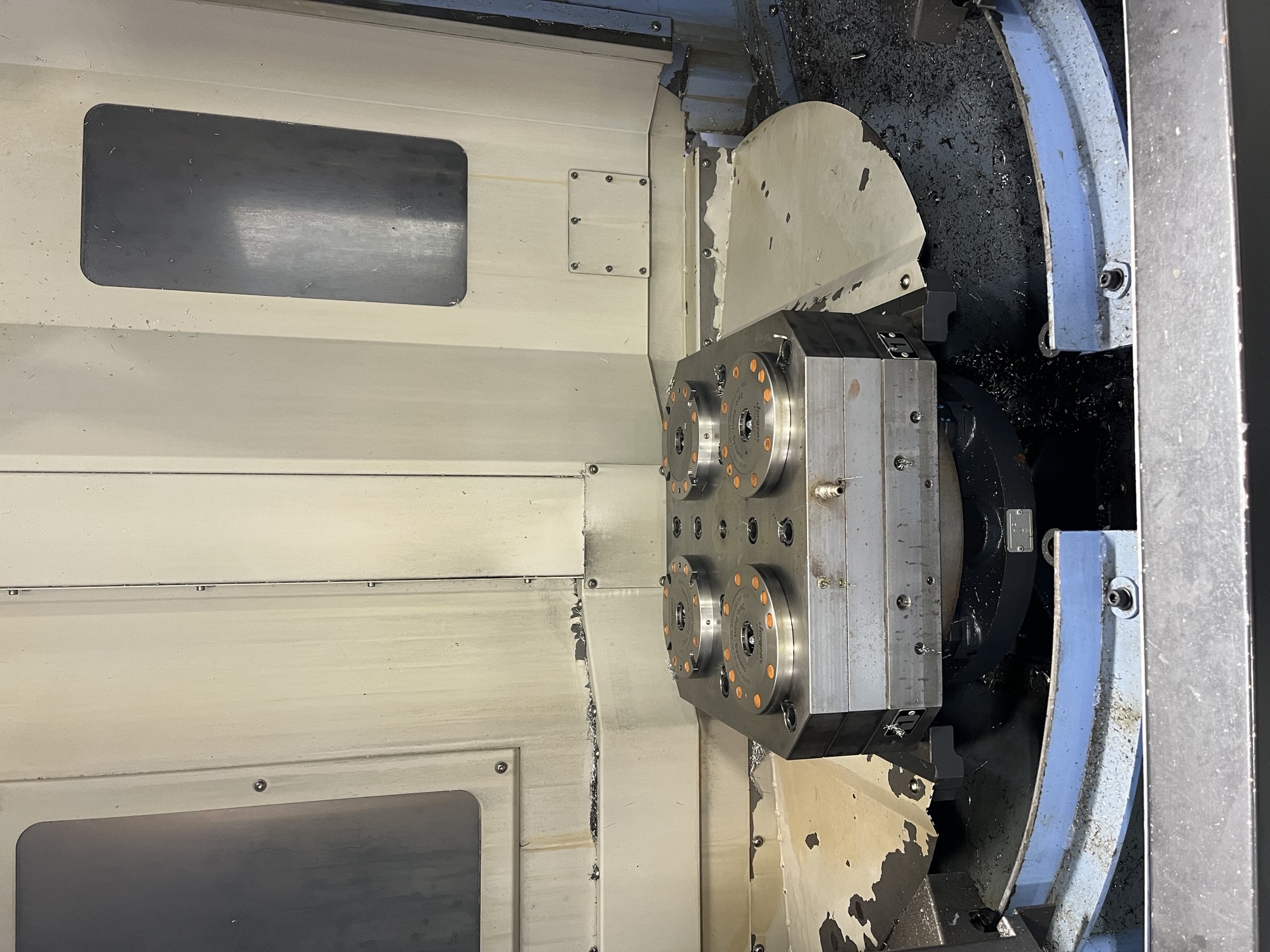

- 5 Axis NCOP Package A Trunion Table
- Hyper HQ Mode B w/ Data server and Ethernet I/F
- Tool center point control
- Inverse time feed
- Rotary axis rollover
- Single direction positioning
- Program Editor w/ Multifacer II
- Tool Support Function
- SOFT AC – Adaptive Control Function
- T1-A Renishaw probe and Software that uses 188′ of memory
- Fanuc includes custom macro B w/ 600 variables, skip function, and coordinate system rotation (G-command)
- A5 software ModeA included (ModeA: Pivot Point Measurement)
- NC Option package A (F)
- Custom macro B, 82 variables
- Memory – increase to 4,199 FT (1280 M), 512 K char/1000 programs
- Programmable mirror image
- Run hour & parts counter display
- Tool life management (256 sets)
- Tool offsets increase to 200 sets total
- Work coordinate system, additional 48 types
- Helical Interpolation
Description
Equipped With:
- Fanuc 31iA5 CNC Control

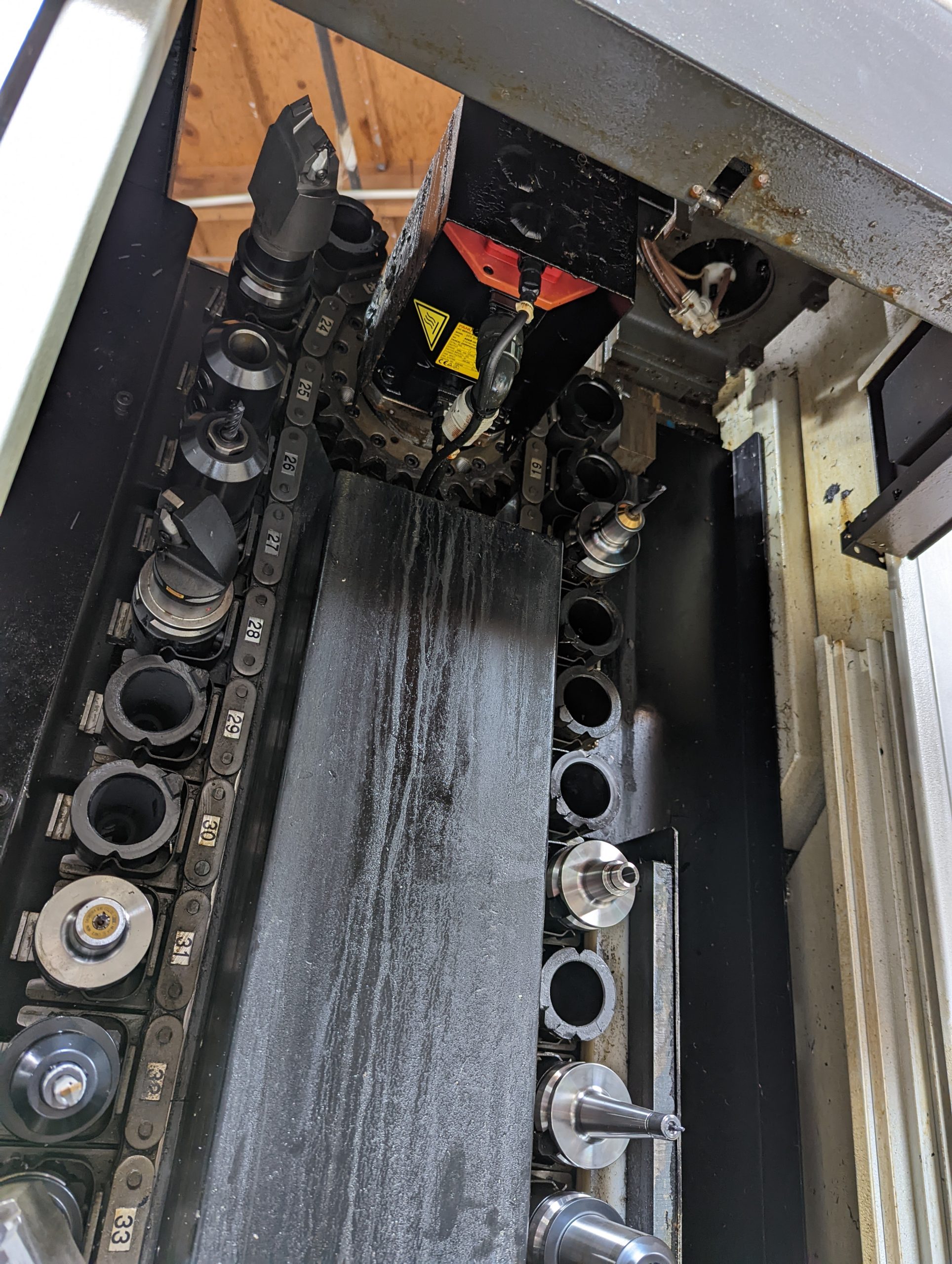

- 40 Tool ATC
- Table Positioning (0 deg for loading / 90 deg for
- machining)
- Thru-The-Spindle Coolant

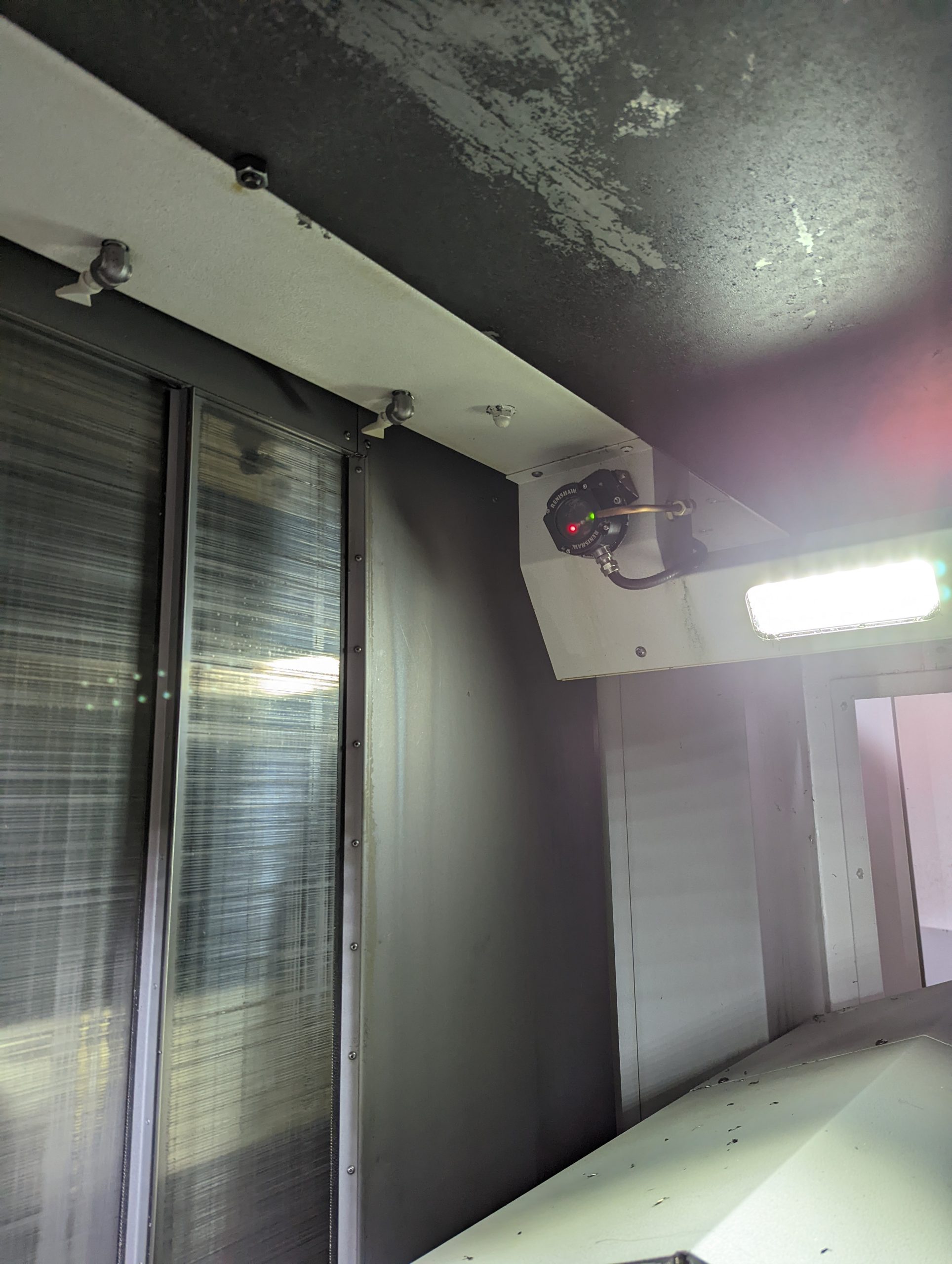

- BLUM Laser Measuring System (Tool Length & Tool Breakage)

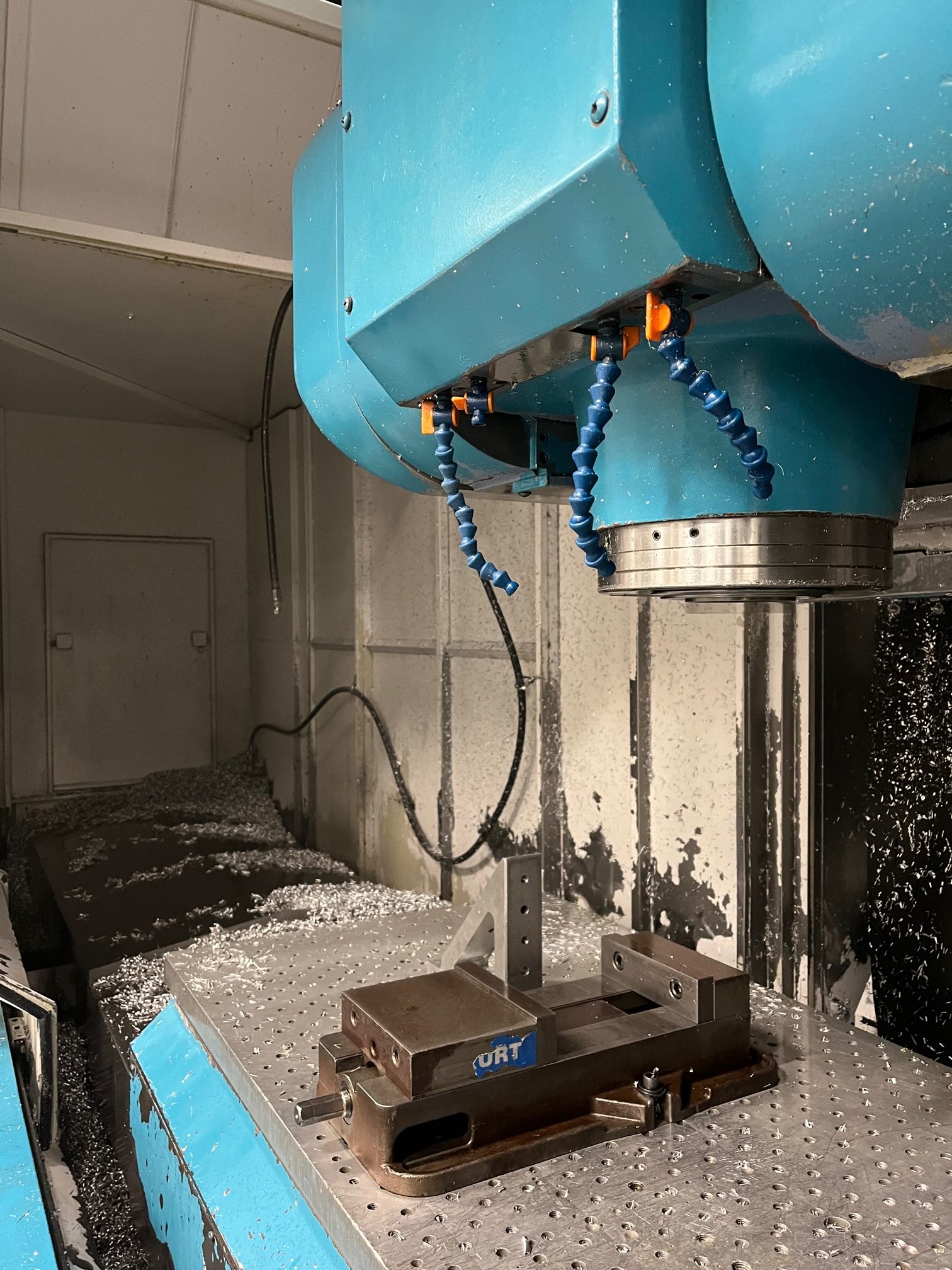

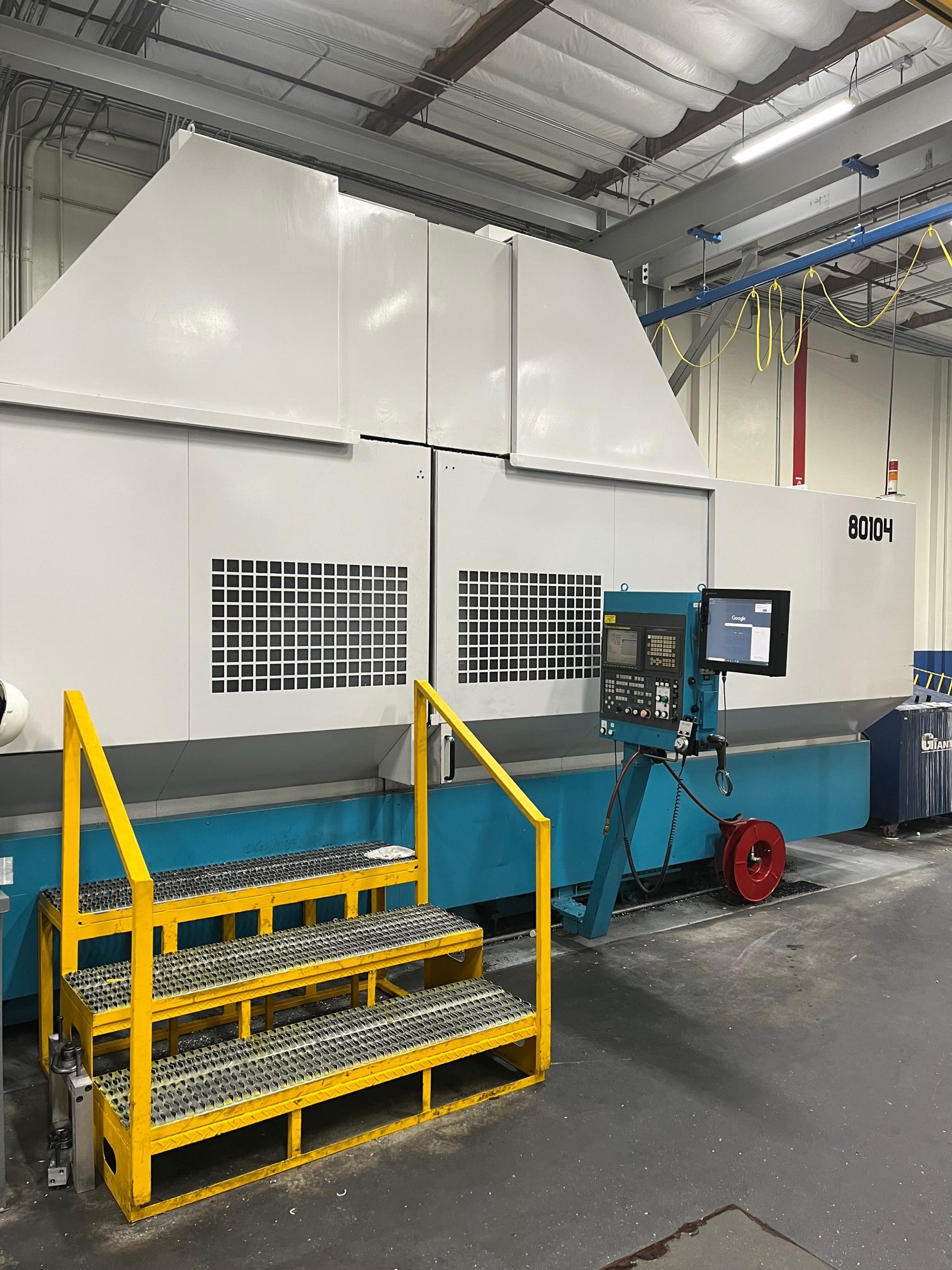

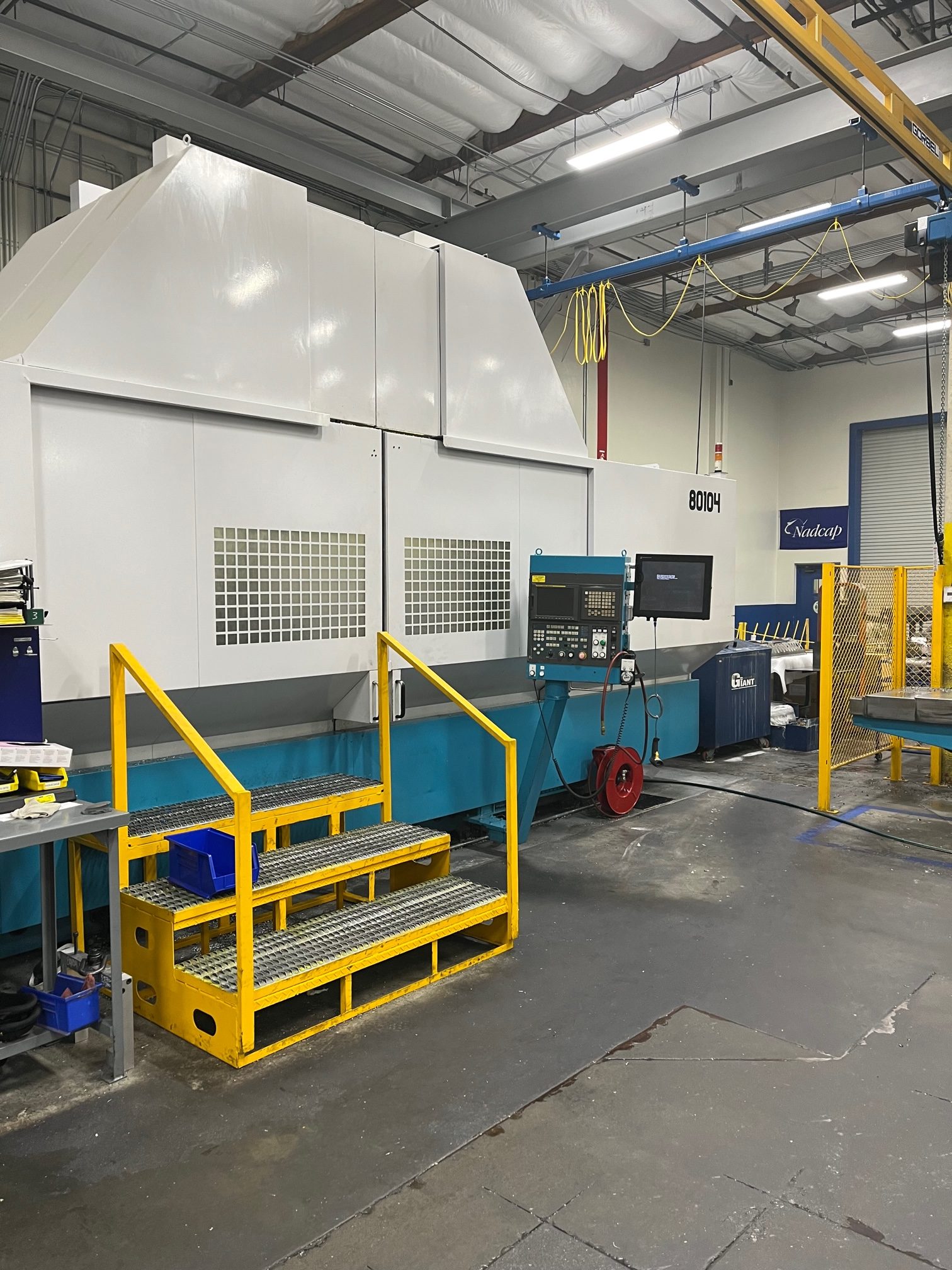

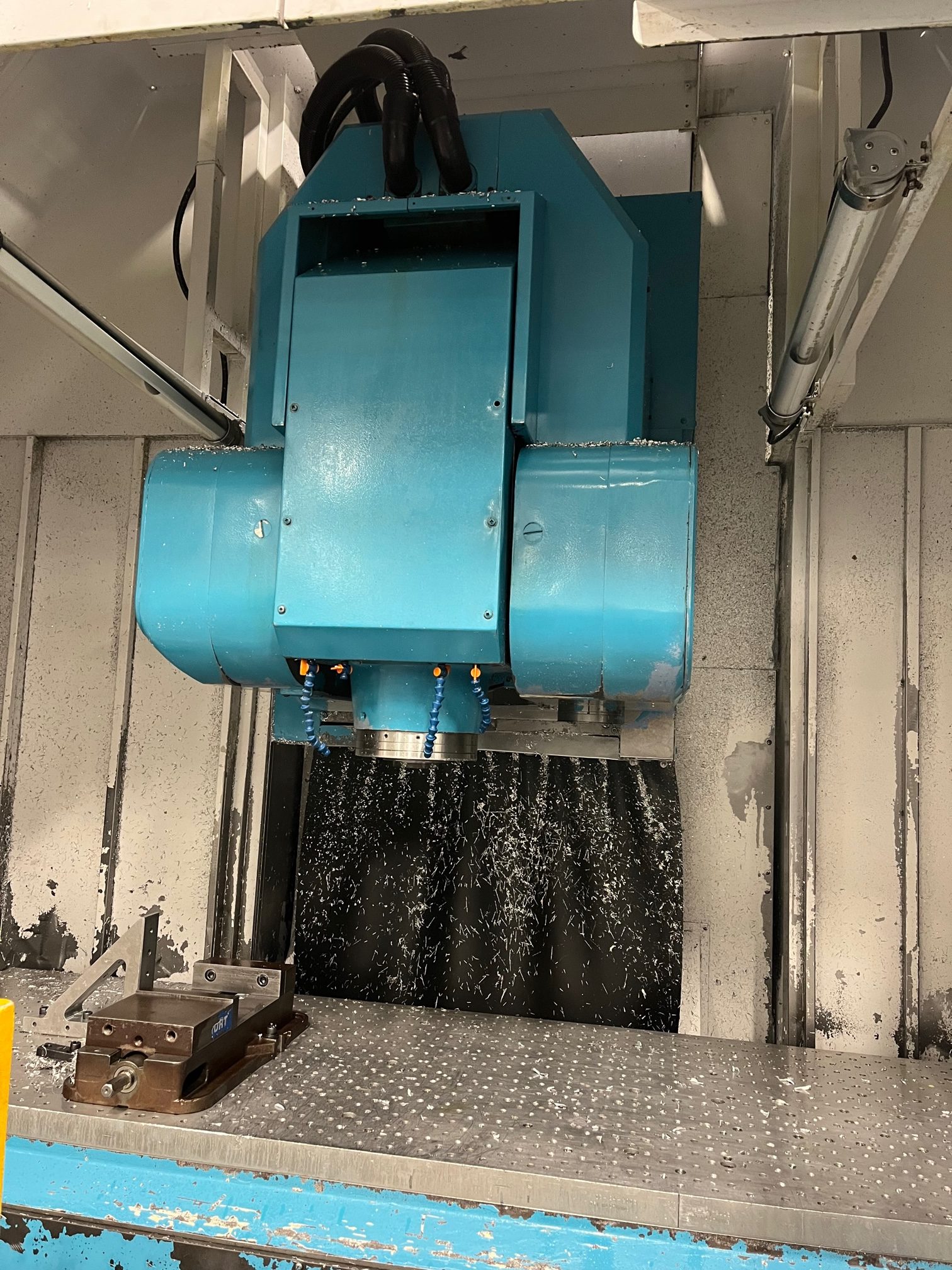

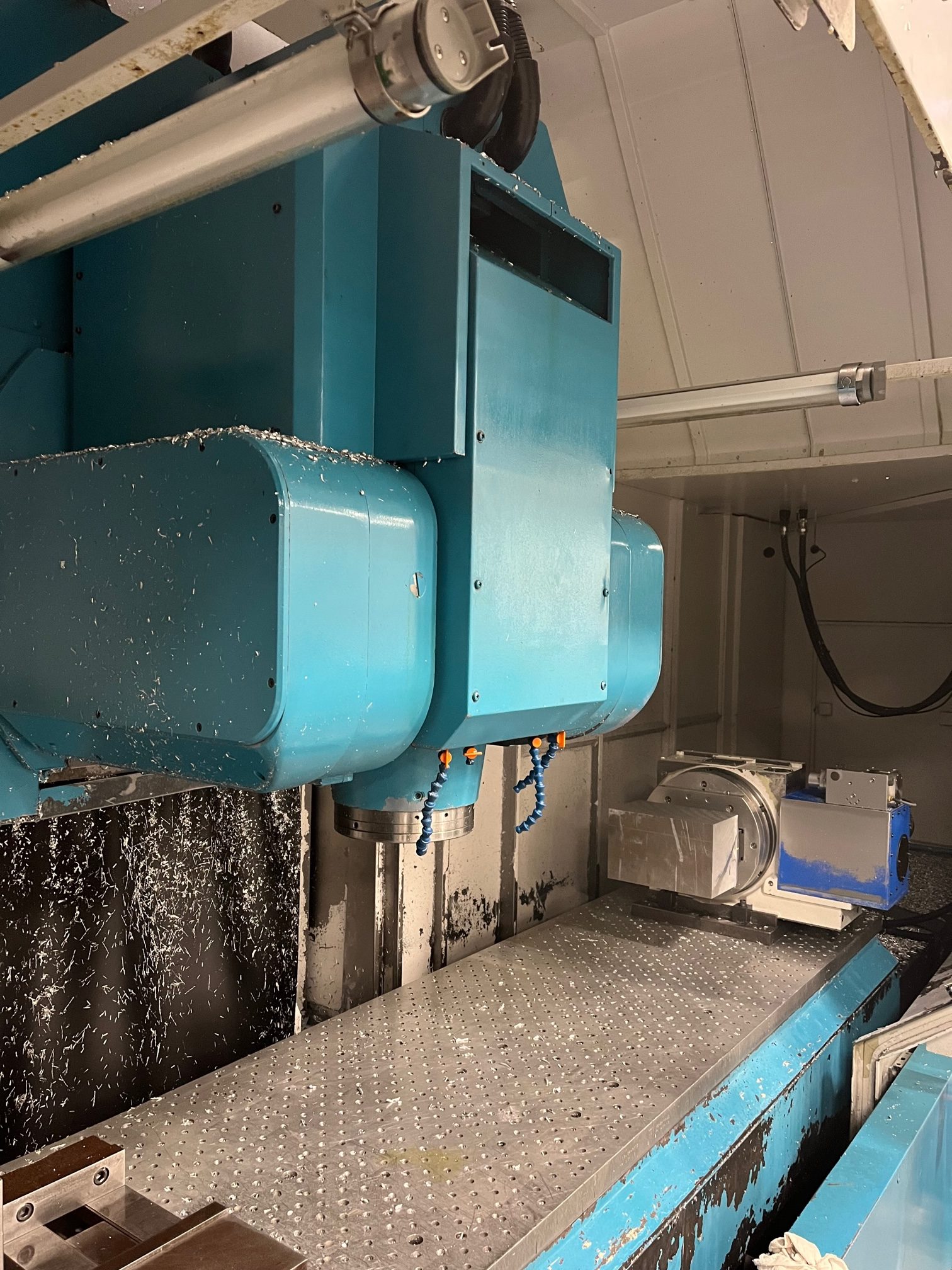

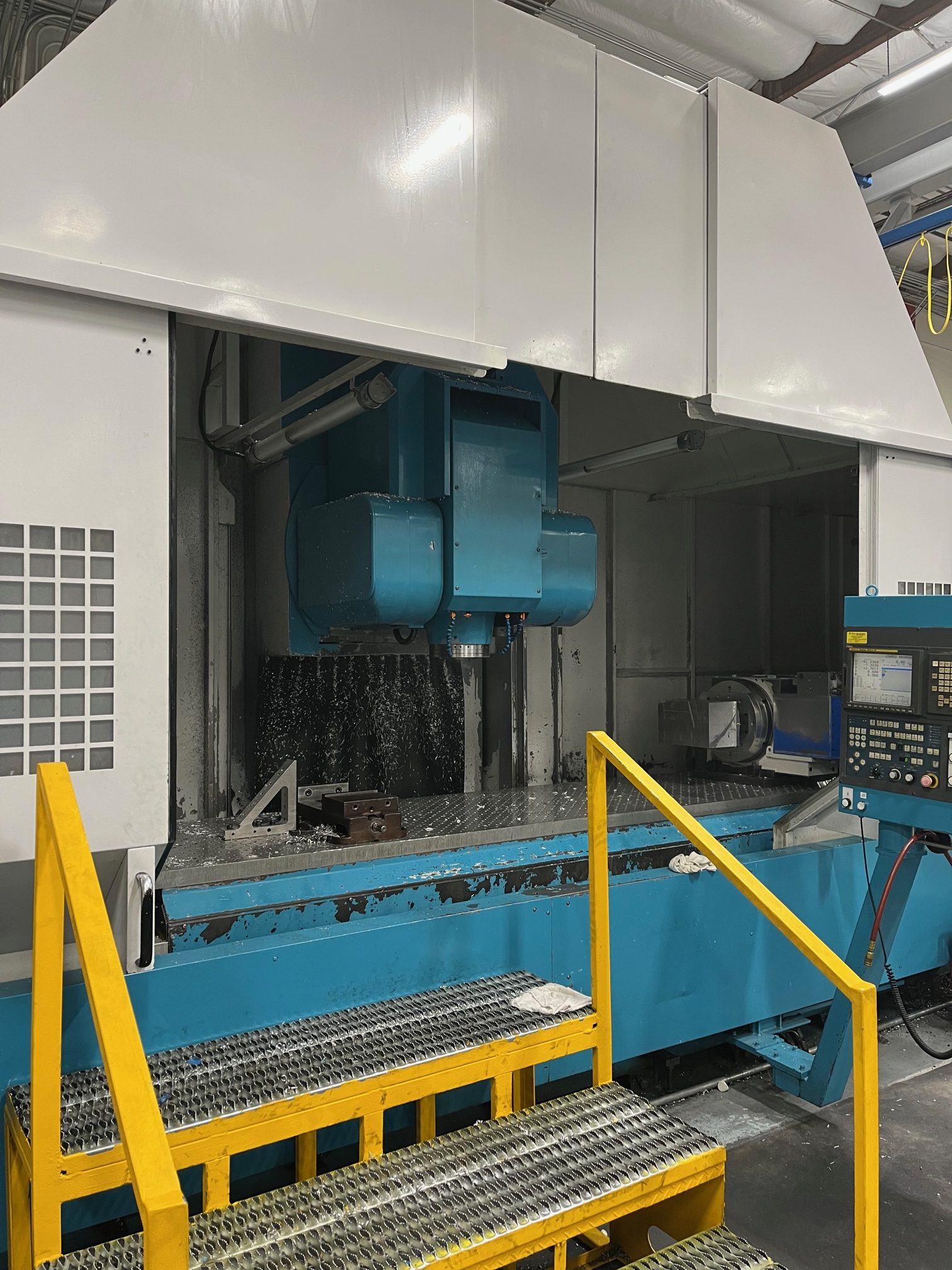

Product: SNK HPS 120B CNC 5 Axis High Speed Profiler
Serial No.: K2688
Year: 2006 / 2008
Specifications:
- Spindle Speeds: 150 to 12,000 RPM
- Spindle Taper: 50 Taper
- Spindle Motor 50 / 40 HP
- X Axis Travel: 124″ / 3,150 mm
- Y Axis Travel: 52″ / 1,320 mm
- Z Axis Travel: 30″ / 762 mm
- A Axis (Spindle Tilt): +/- 90 Deg
- C Axis (Spindle Rotation): +/- 270 Deg
- X, Y, Z Axis Feed Rates: 1 to 393 IPM
- X, Z Rapid Traverse Rates: 945 IPM
- Y Axis Rapid Traverse
- Rate: 787 IPM
- A, C Axis Feed Rates: 0 – 1,800 DPM
- Table Size: 48″ x 120″ / 1,220 mm x 3,048 mm
- Table Weight Capacity: 11,000 Lbs.
- Equipped With:
- Fanuc 31iA5 CNC Control
- 40 Tool ATC
- Table Positioning (0 deg for loading / 90 deg for machining)
- Coolant
Description
- Fanuc 0iMF
- 6,000 rpm
- CAT50
- ATC 30
- 63” x 31.5” x 31.5”
- Chip conveyor
- Kitagawa 12” Tilt Rotary table (TT-320) available at extra
cost (includes all amplifiers for machine)
Note: With this option, the machine is 4+1 axis - s/n: 1600-17027
- July 2017
Description
- Fanuc 0iMD
- 6,000 rpm
- CAT50 spindle
- 63” x 31.5” x 31.5”
- ATC 30
- Chip conveyor
- Kitagawa 12” rotary table
- s/n: 1600 – 11052
- Jan. 2012
